Quick Details

  • Condition: New
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: GRANDLIFTING
  • Model Number: ZHL-B
  • Usage: Other
  • Power Source: Hand Chain
  • Sling Type: Chain
  • Maximum Lifting Weight: Depends
  • Maximum Lifting Height: 12M
  • Lift Speed: Control
  • Certification: TUV, SGS, CE
  • Warranty: 1 Year
  • Hand Chain: G80
  • Capacity: 0.5t-20t

Packaging & Delivery

Packaging Details each pieces be packed in strong plastic bag, then standard export carton, ply-wooden pallet/steel pallet.
Delivery Time 25 days after order





Have a series of saft working load from 0.25 ton to 6 ton.
various load chains if you need.

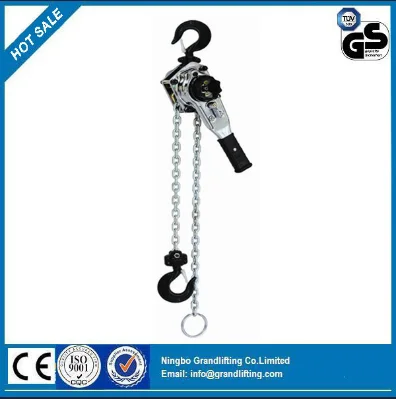

This lever block is very efficient and handy material
handing equipment of all-purpose. sepcially designed for streching, holding and pulling a any angles, both horizontal and oblique in any locations.
Having a series of safe working load from 0.25 ton 6 ton, This lever block is widely used in all industrial field, such as tying heavy loads for transportation industry.
stretching steel frames for the steel construction, fiting works of the oil and shipping industries, plumbing, machinery mover, utility, civil engineering and large-scale plants, s this is a lever block just for everyone's needs.


Item no ZHL-B-0.8TZHL-B-1TZHL-B-1.6TZHL-B-2TZHL-B-3.2TZHL-B-6.3TZHL-B-9T
Capacitykg800100016002000320063009000
Liftm1.51.51.51.51.51.51.5
Test loadkg11251500225030004500900013500
Pull on lever to lift full loadN290300370395380390400
No.of load chain falls 1111123
Diameter of load chainmm5.6678101010
Min.distance between hooksmm330365400445520640830
Length of lever handlemm250250300300370370370

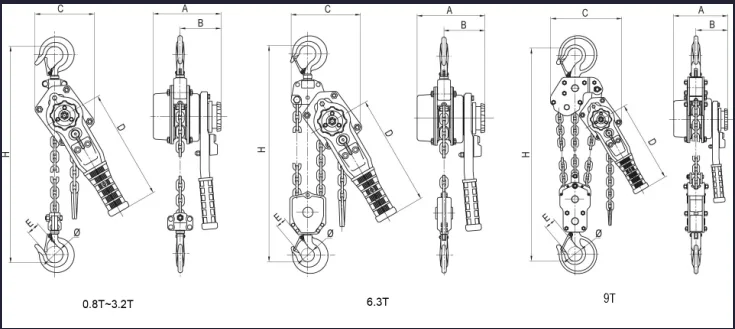

Dimensions                    mmA152157178186206206206
B91.594104110118118118
C132140145152199230338
φ35.537.542.545505367
E2627.53133374050
Net weightkg6.97.910.914.420.728.148.9
